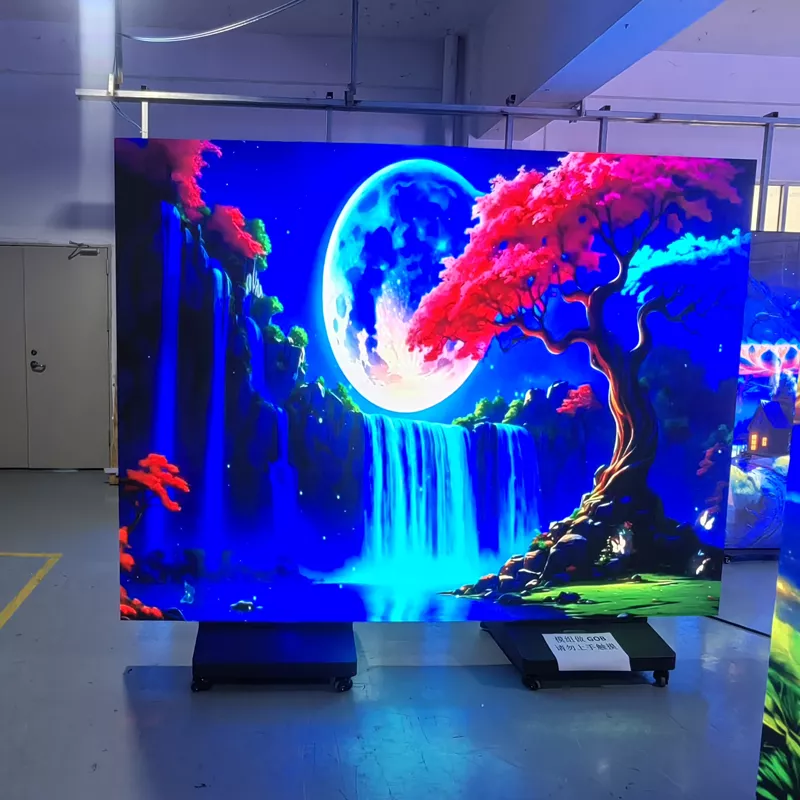

P1.86 Three-Fold LED Screen
This P1.86 three-fold LED screen is a high-definition indoor display with foldable design, featuring easy movement and quick installation. It is widely used in exhibition halls, meeting rooms, events, live streaming backdrops and commercial displays.
Key Advantages
Ultra HD Visual Effect
Pixel pitch: 1.86mm, pixel density up to 288,906 dots per square meter. The image is exquisite with no graininess when viewed from 2 to 3 meters away.

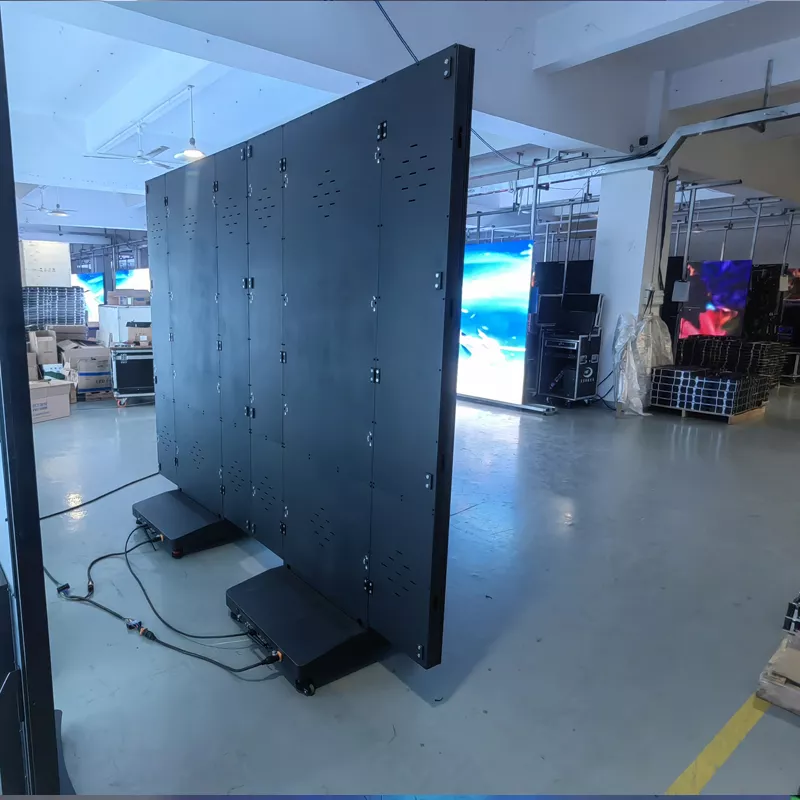

Three-Fold Structure
Integrated 3-section folding design. Compact and slim after folding for easy transport and storage; ready for use once unfolded.
Lightweight & Slim Body
Adopts aerospace-grade aluminum profile. Each module weighs around 0.36kg. Light enough for one person to carry and mount effortlessly.
Seamless Splicing
Flatness tolerance within ±0.1mm. No dark lines between panels for smooth and consistent images.
High Refresh Rate & High Grayscale
Refresh rate ≥ 3840Hz, 16-bit grayscale. Rich color layers and natural color transition even at low brightness.
Silent Heat Dissipation
Fanless design with graphene thermal conductive layer. Low operating temperature and stable performance for long-time operation.
Front Maintenance
Modules can be replaced directly from the front without dismantling the whole screen, saving maintenance time and cost.
Intelligent Control
Adjustable brightness: 200–800 cd/㎡. Content can be sent via mobile phone or computer, compatible with various signal sources.
Main Specifications
Pixel Pitch: 1.86mm
Pixel Density: 288,906 dots/㎡
Module Size: 320×160mm
Module Resolution: 172×86
Brightness: 500–800 cd/㎡ (indoor)
Contrast Ratio: 5000:1
Refresh Rate: ≥ 3840Hz
Grayscale: 16bit
Viewing Angle: ≥ 175° (horizontal & vertical)
IP Rating: IP20
Service Life: ≥ 100,000 hours
Application Scenarios
Corporate exhibition halls, conference rooms, lecture halls, press conferences, stage backdrops, live streaming rooms, shop displays, brand image presentation, roadshows and other mobile display occasions.
Lightweight and easy to install
Foldable design, small volume, easy to store, convenient for transportation
Universal Wheel Design
Comes with 4 universal wheels, making it easier to move any place wherever you want
Separate poster or seamless splice
Mix. combine. Magnify. The Advertising LED screens can be used alone or combined to form a huge picture
