P6.25 outdoor full-color LED display features 6.25mm pixel pitch with high brightness and clear images. It is IP65 dustproof and waterproof for all-weather outdoor use. Equipped with 1000×1000 die-cast aluminum cabinet, it supports front and rear maintenance, easy installation and seamless splicing. Widely used in advertising, stages and scenic spots with stable performance and high cost performance.
Material & Structure
It is usually made of die-cast aluminum or aluminum profile cabinets, featuring light weight and sturdiness. Some P6.25 LED displays are flexible screens. For example, products of REEFILM are only 2.5mm thick and weigh 5kg/m². They can be flexibly bent with a minimum bending diamet
er of 6cm. Some other models come with curved structures, such as YUCHIP’s P6.25 Curved LED Panels, whose curve angles can be adjusted within the range of ±5°, ±10° and ±30°.

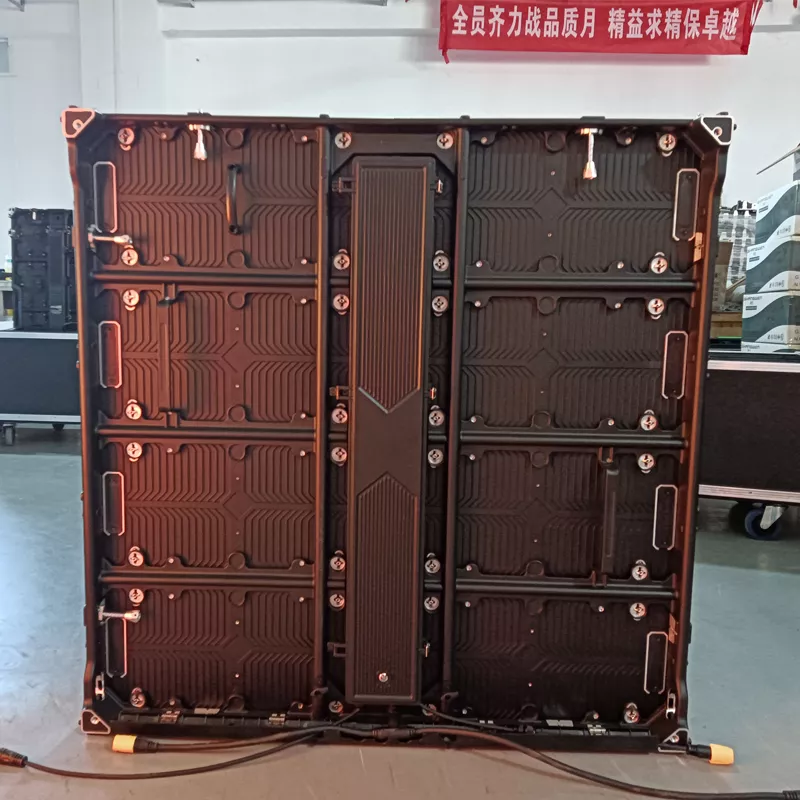

Cabinet Type: Die-cast aluminum 1000×1000 standard cabinet
Installation Method: Front maintenance / Rear maintenance optional, ideal for outdoor fixed installation
Splicing Design: Four-side precise positioning lock, narrow splicing gap and high flatness, suitable for large-area full screen assembly
Protection Grade: IP65 front and rear waterproof, windproof, rainproof and dustproof for all-weather outdoor use
Standard Brightness: 4500–5500 cd/㎡, high brightness for outdoor use, clear visibility under direct sunlight
Refresh Rate: 1920Hz / 3840Hz, high refresh rate optional
Gray Scale: 16bit, smooth color gradient without mosaic effect
Viewing Angle: Horizontal / Vertical ≥120°, no color distortion at multi-viewing angles
Operating Temperature: -20℃～+60℃, resistant to extreme low and high temperature
Protection Level: IP65, front & rear waterproof, dustproof, windproof and rainproof for all-weather outdoor application
Quick assembly, d isassembly and maintenance of power box and module Fully sealed module, supports front and back maintenance. No maintenance AC required
Q: What scenarios is P6.25 suitable for?
A: Outdoor building large screens, square advertising screens, stage rental, stadiums, government park screens, cultural tourism lighting and so on.
A: Moderate pixel pitch, high brightness, cost-effective, strong weather resistance and easy maintenance. It is the preferred specification for medium and long-distance outdoor display.
