Parameter Name | Product Parameters | |

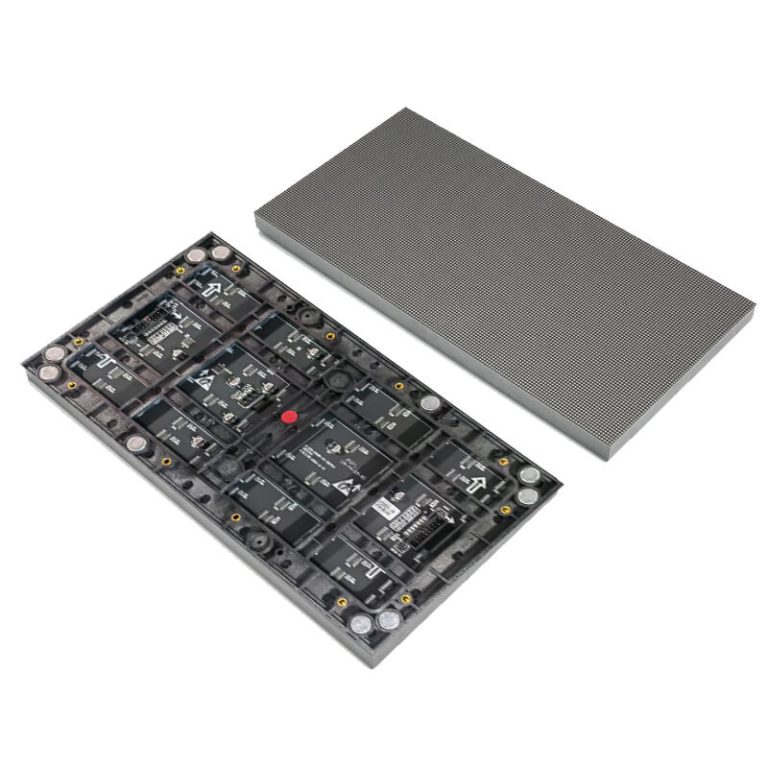

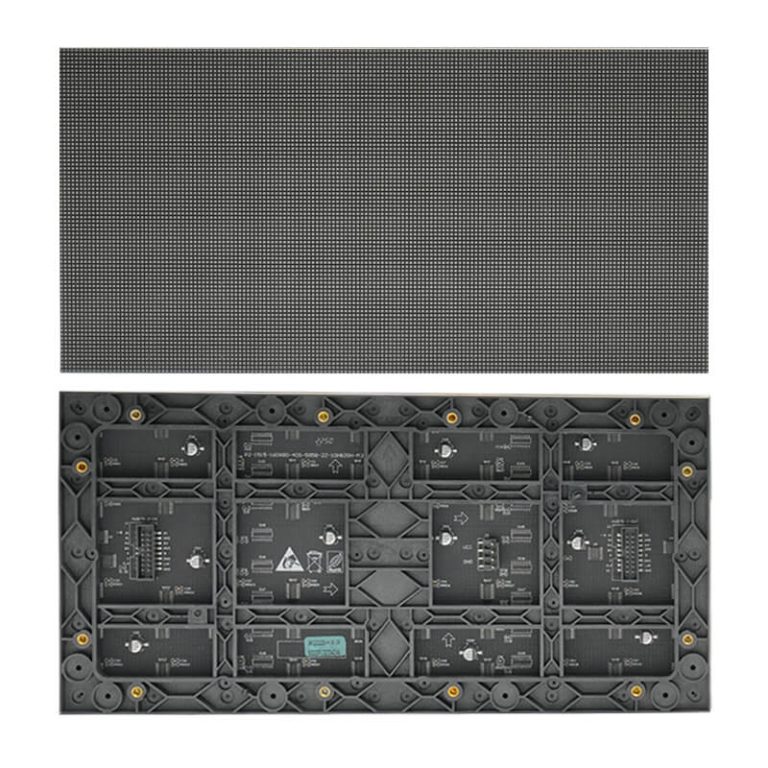

Module Composition | Pixel Structure | SMD2727/1921 Three-in-one LED |
| Pixel Pitch (mm) | 6 | |
| Module Resolution (W×H) | 32*16 | |
| Module Dimensions (mm) | 320（W）*160（H） | |
| Module Weight (kg) | 0.42 | |
| ModuleMax.PowerConsumption (W) | 40 | |

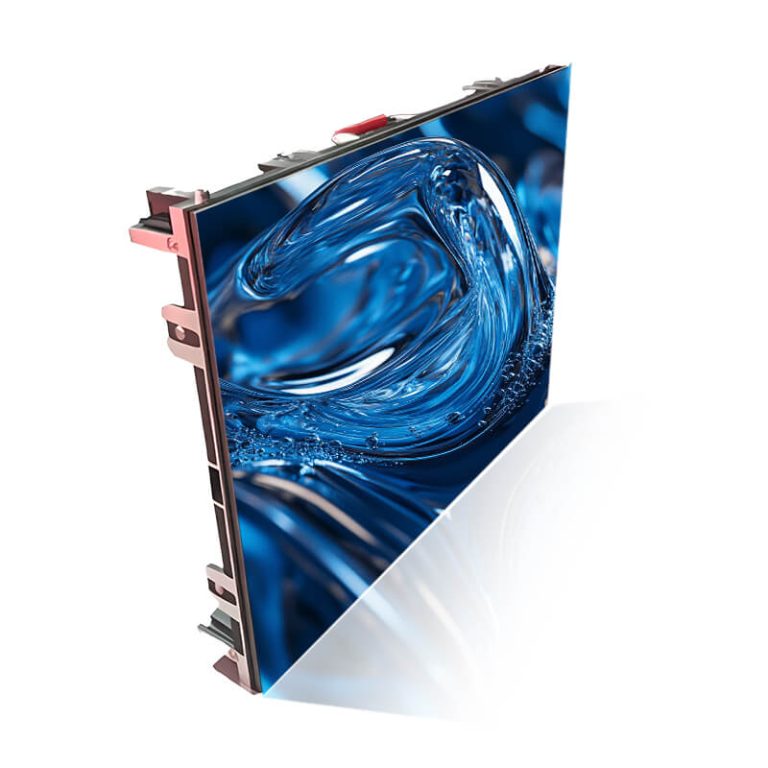

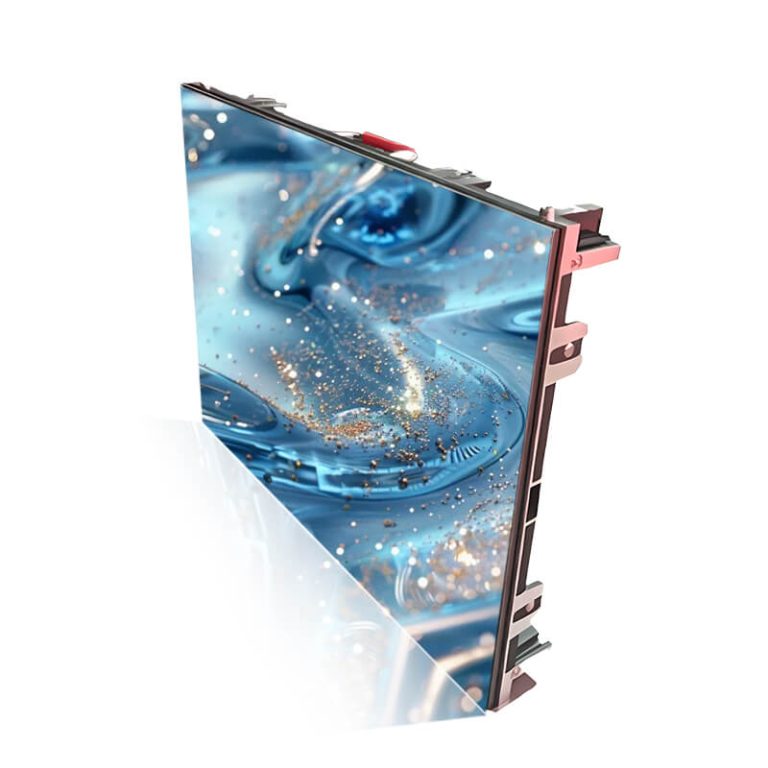

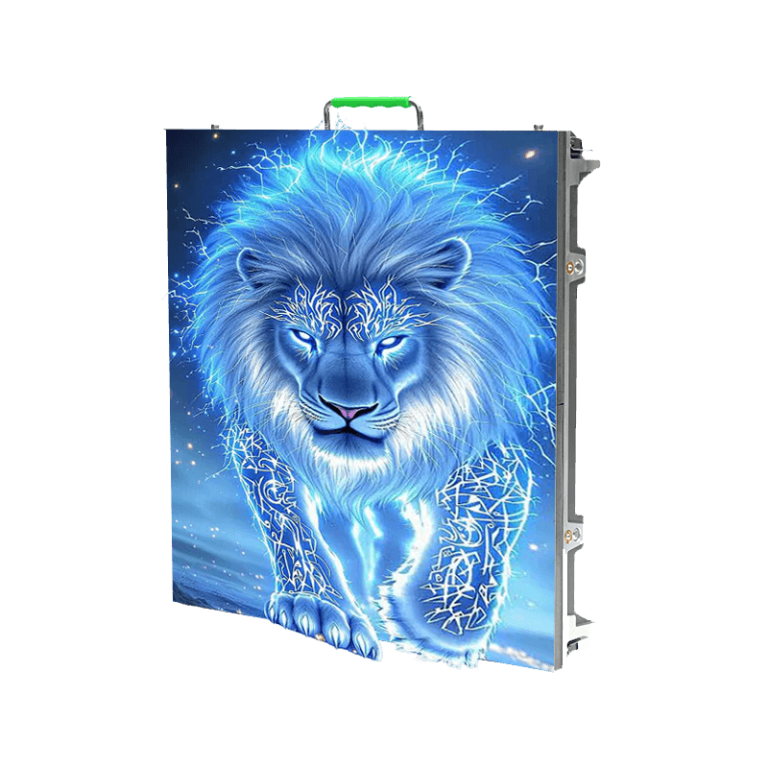

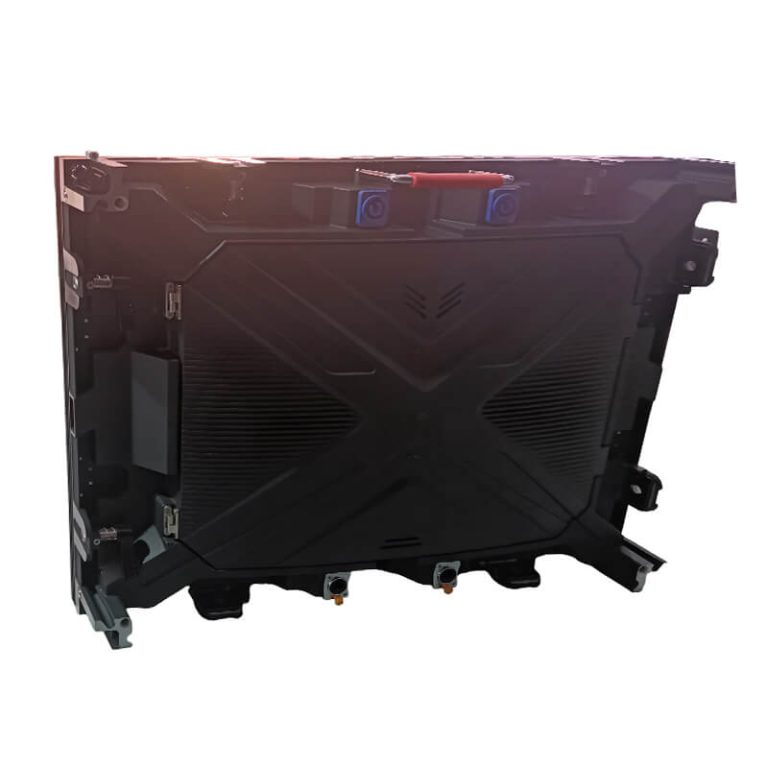

Cabinet Composition | Cabinet Module Composition (W×H) | 3*6 |
| Cabinet Resolution (W×H) | 96*96 | |
| Cabinet Dimensions (mm) | 960（W）×960（H）×85（D） | |
| Cabinet Area (m²) | 0.93 | |
| Cabinet Weight (kg) | 15-18 | |
| Cabinet Pixel Density (dots/m²) | 10000 | |
| Cabinet Flatness (mm) | ≤0.1 | |

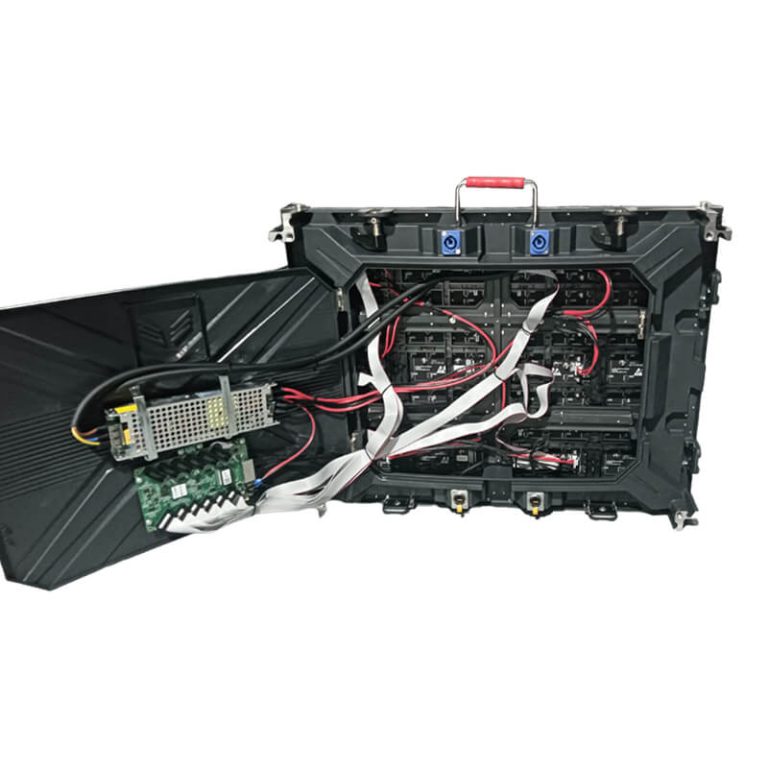

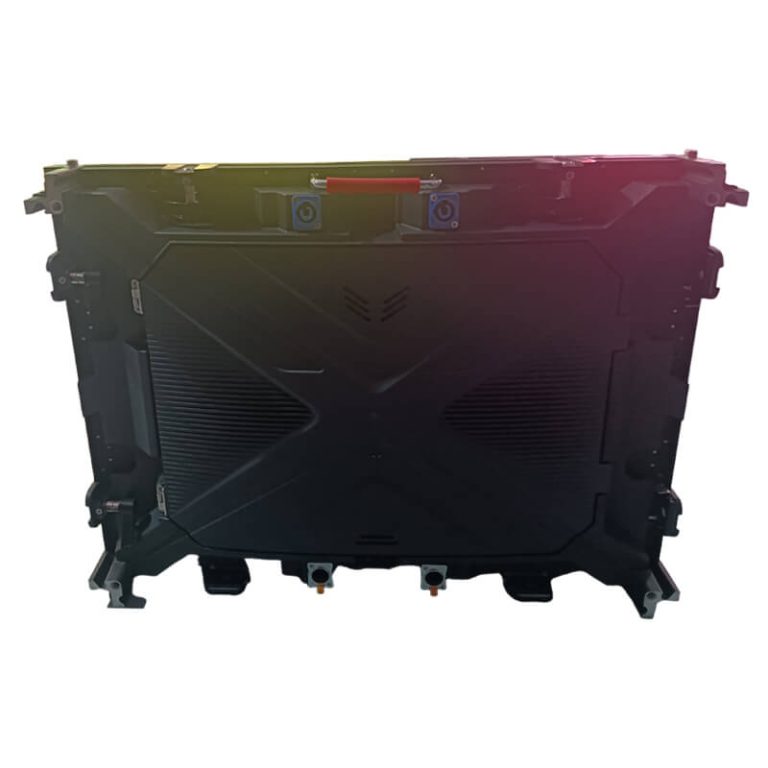

| Maintenance Method | Rear Maintenance | |
| Cabinet Material | Iron/Aluminum/Profile | |
Optical Parameters | Single Point Brightness Correction | / |
| Single Point Chromaticity Correction | / | |
| White Balance Brightness (nits) | ≥5500-7500 | |
| Color Temperature (K) | 8000-10000 | |
| Viewing Angle (Horizontal/Vertical °) | 120/90 | |
| LED Center Deviation | <3% | |
| Brightness/Chromaticity Uniformity | ≥97% | |
| Contrast Ratio | 4000:1 | |
Electrical Parameters | Peak Power Consumption (W/m²) | 850 |
| Average Power Consumption (W/m²) | 350 | |
| Power Supply Requirement | AC220V, Frequency 47-63 (Hz) | |
| Safety Standards | GB4943/EN60950 | |
Processing Performance | Frame Change Frequency (Hz) | 50&60 |
| Driving Method | Constant Current Drive, 2 Scan | |
| Grayscale Levels | 16384 | |
| Refresh Rate (Hz) | ≥3840 | |
| Color Processing Bit Depth | 14bit | |
| Module Built-in Power-off Storage Function | Stores brightness, chromaticity correction data, module parameters | |
| Video Playback Capability | 2K HD, 4K Ultra HD images | |
Usage Parameters | Typical Lifespan (hrs) | 50,000H |
| Operating Temp./Humidity Range (°C/RH) | -10 – 40 / 10%-80%RH（Non-condensing） | |
| Storage Temp./Humidity Range (°C/RH） | -20 – 60 / 10%-85%RH（Non-condensing | |
| Applicable Standards | CCC， | |
