P3.91Enclosure

P3.91module

Chat Now

Product Details

P3.91 Indoor SMD Full Color Technical Parameters

Unit board parameters
Technical parameters	UNIT	parameters values
Pixel pitch	mm	3.91

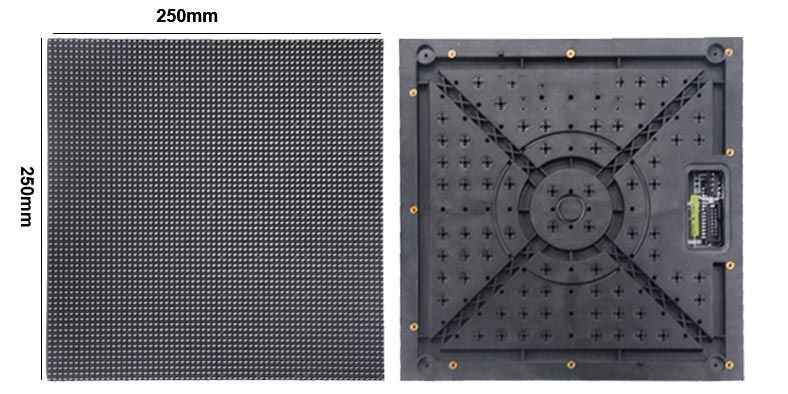

Panel size	mm	L250H250T14
Physical density	dot/M2	65746
Pixel configuration	R/G/B	1,1,1
Driving method		16/32Constant current scan
LED Encapsulation	SMD	2121
Display resolution	DOTS	64X64=4096
Module weight	KG	0.498
Module port		HUB75
Module working voltage	VDC	5
Module consumption	W	≤28
Every square metre module	PCS	16
Maximum power	W/ M2	<500
Equilibrium brightness	CD/ M2	≥950
Working environment temperature	0C	-10~60
Working environment humidity	RH	10%～70%
Display working voltage	VAC	AC46～54HZ，220V±15%/110V±15%
Best viewing distance		≥4M
Lamp failure frequency		＜0.0001
IP rating		The back IP40，The front IP50
Control method		Synchronous or asynchronous control

500mm*500mm rental box (weight per box KG)

1000mm*1000mm rental box (single box weight 12.45KG)

2. Packaging method

P3.91Enclosure7

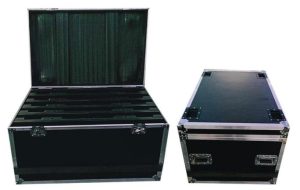

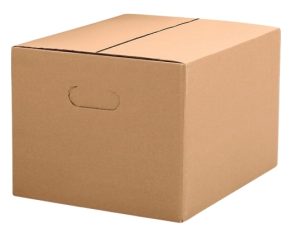

flight case carton

Note: Our company will continue to upgrade and improve our existing products. Specifications are subject to change without prior notice. Our company reserves the right to interpret product specifications, models, and technical indicators.
